WH50 Multiview PAPR Welding Helmet
Product Features - Helmet WH50
With IRUV shade 5 side windows for lateral vision
Fitted with Pro head gear
High quality carbon graphite graphics
Room available for disposable respirator to be worn underneath helmet
With combined B rated “V” grinding visor
Total weight 970 gr
Welding filter WF40
WF40 4/9-12 INT ADF / Standard 90 x 110mm cartridge size and a 98 x 60mm viewing area. Powered by 2 x AAA replaceable batteries. Fitted with 2 sensors and adjustable sensitivity and delay. Fastest switching speed of 0.04ms from clear to dark. True colour definition for a clear state shade 4 and internally controlled dark shade range from 9 to 12.
- Questions? Tel. +46-31-14 29 70
- info@klingstrand.se
Description
Article no.: L5023

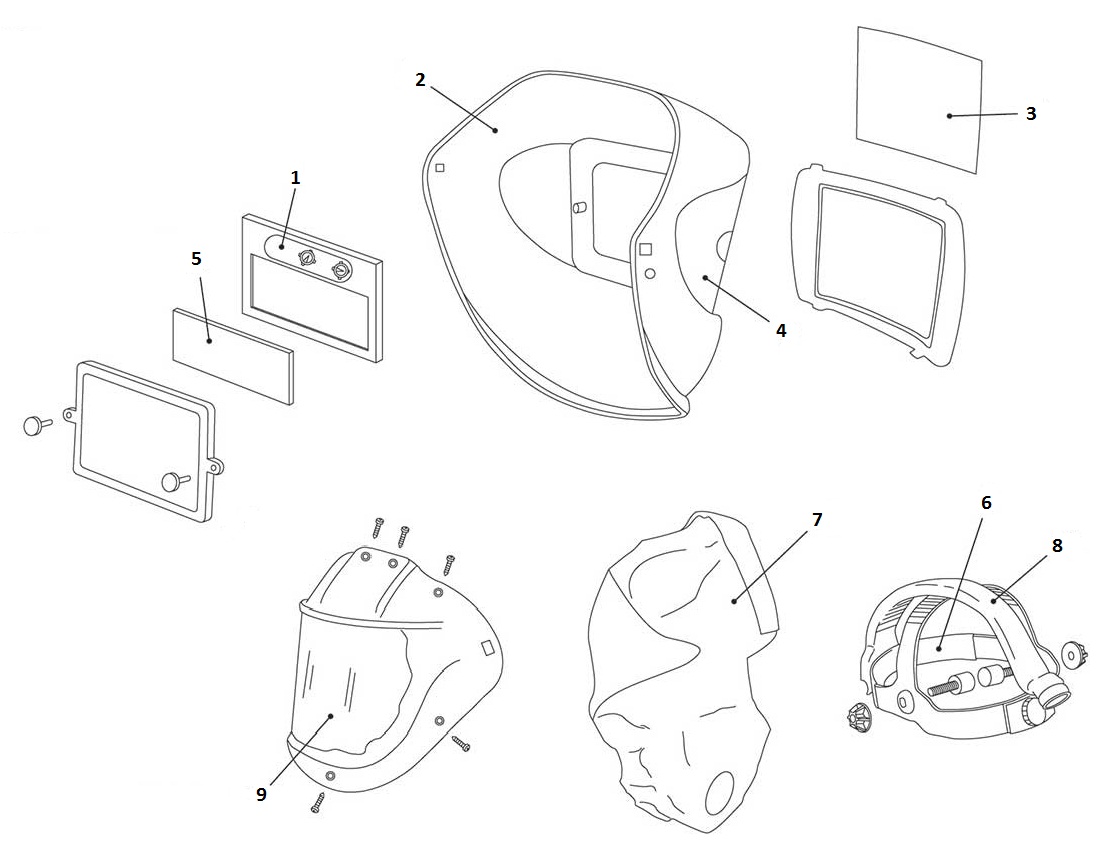

WH50 Spare Parts
• L8162 - 1 - WF40 3/9 12 INT SM ADF
• L5014 - 2 - WH50 empty welding helmet
• L8338 - 3 - Outer Protective Lens 89 x 142 mm
• L8358 - 4 - Side Windows Right & Left
• L8303 - 5 - Inner Protective Lens 109 x 66mm
• L5462 - 6 - Sweat Band
• L5251 - 7 - Face Seal
• L5260 - 8 - Head Gear
• L5252 - 9 - Visor Lens
