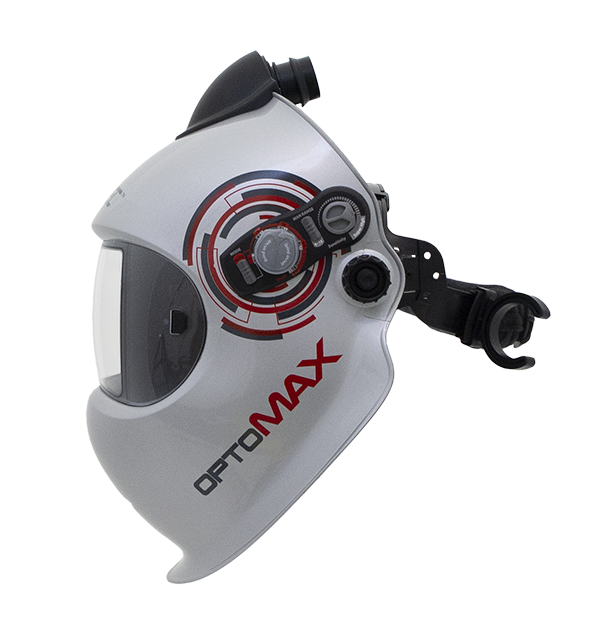

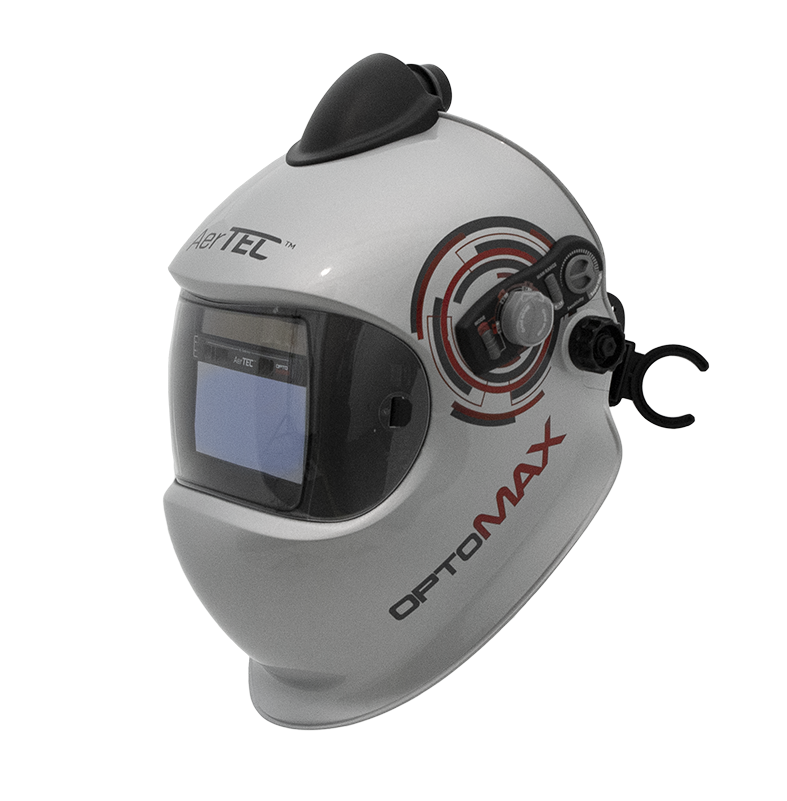

AerTEC OptoMAX AIR 5-13 DIN
Perfect view during welding thanks to world-leading ADF technology from Optrel. Fully automated shade level adjustment for any welding procedure in the 5-13 range. Ultra-HD quality in classes 1/1/1/1. In-built air distribution system delivers the air right into the breathing zone.
Areas of application
Any electric arc welding process Electrode Welding (Stick Welding, SMAW) / MIG / MAG (GMAW) / GMAW High melting rate process / Flux Cored Wire Welding / TIG welding (GTAW) / Plasma Arc Welding / Plasma cutting & Oxy-gas Welding / Grinding in Grind Mode. Prohibited for laser welding!
- Questions? Tel. +46-31-14 29 70
- info@klingstrand.se
Description
Article no.: L7041
AUTOPILOT – fully automatic shade level adjustment (DIN 5–13)
The manual mode features extended shade range
· 5–9 for Oxy and Plasma cutting
· 9–13 for welding
· Ultra-HD quality with natural colour view and classification 1/1/1/1
· TWILIGHT dimming function – gradual light restoration reducing eye fatigue
· Enlarged viewing area 50×100 mm
· Grind mode function
· In-built air distribution system
· The highest standard in respiratory protection – TH3
Technical data:
· Weight 695 g
· ADF dimension 110x90x7 mm
· Shade level DIN 5–13
· Open state shade DIN 4
· Viewing area 50×100 mm
· Hose connection QuickLOCK™
· Certification EN 379 1/1/1/1, EN 175 B, EN 12941 TH3, EN 14594 3B
· Protection factor (NPF) 500
