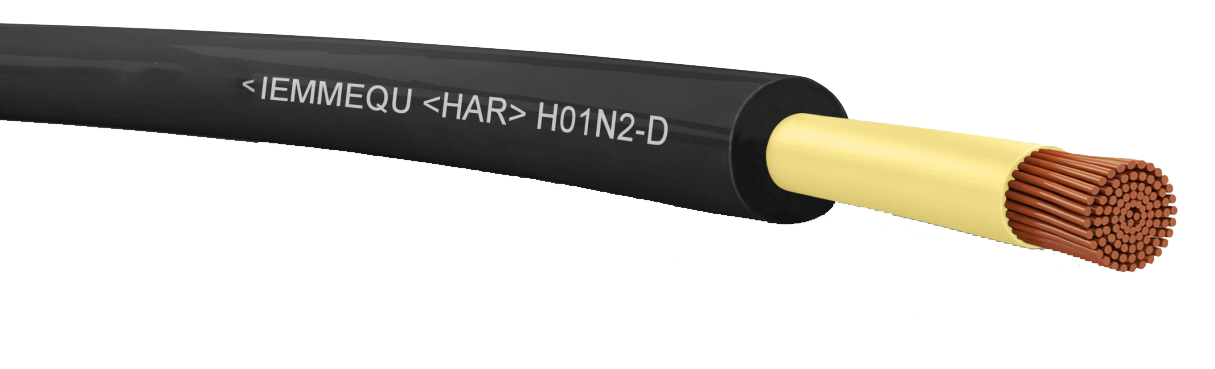

Welding cable rubber H01N2-D 25mm²

H01N2-D Flexible Neoprene insulated welding cable. For connection of electrode holder and earth clamp to power source. Rated voltage: 100/100 V Application: Welding & charging cable Type of electrical conductor: Flexible red copper Conductor diameter: 6.90 mm² Cable diameter: 25 mm² Minimum external diameter: 10.1 mm² Maximum external diameter: 12.7 mm² Minimum bending radius mobile installation: 4 times the outer diameter Type of outer sheath: Rubber compound EM5 (EN 50363-2-2) Minimum average diameter of sheath: 2 mm Color of sheath: Black Operating temperature: -20° C | +85° C Short circuit temperature: +200° C (max 5 sec.) Test voltage: 1000 V Duty cycle 60%: 230 Amps Duty cycle 35%: 300 Amps Electrical resistance at 20°C : 0.78 Ω/km Approximate weight: 287.19 kg/km Approvals: CE. SS-EN 50525-2-81. EN 60332-1-2; IEC 60332-1-2
